WHAT MAKES IT DIFFERENT
INTEGRATED LED LIGHTING
Built-in LED lighting with Warm, Natural and Cool modes lets you create the right ambience while enjoying powerful air circulation.
SILENT & EFFICIENT OPERATION
Engineered with an advanced BLDC motor for powerful airflow with smooth, quiet operation—ideal for spaces where comfort and low noise matter.
DESIGNED FOR DOUBLE-HEIGHT CEILINGS
Designed to deliver effective air circulation in double-height spaces up to 20 feet, helping move air from ceiling level toward the occupied area.
POWERFUL AIRFLOW. BUILT FOR PERFORMANCE.
POWERFUL AIRFLOW FOR DOUBLE-HEIGHT SPACES
DESIGNED FOR DOUBLE-HEIGHT CEILINGS

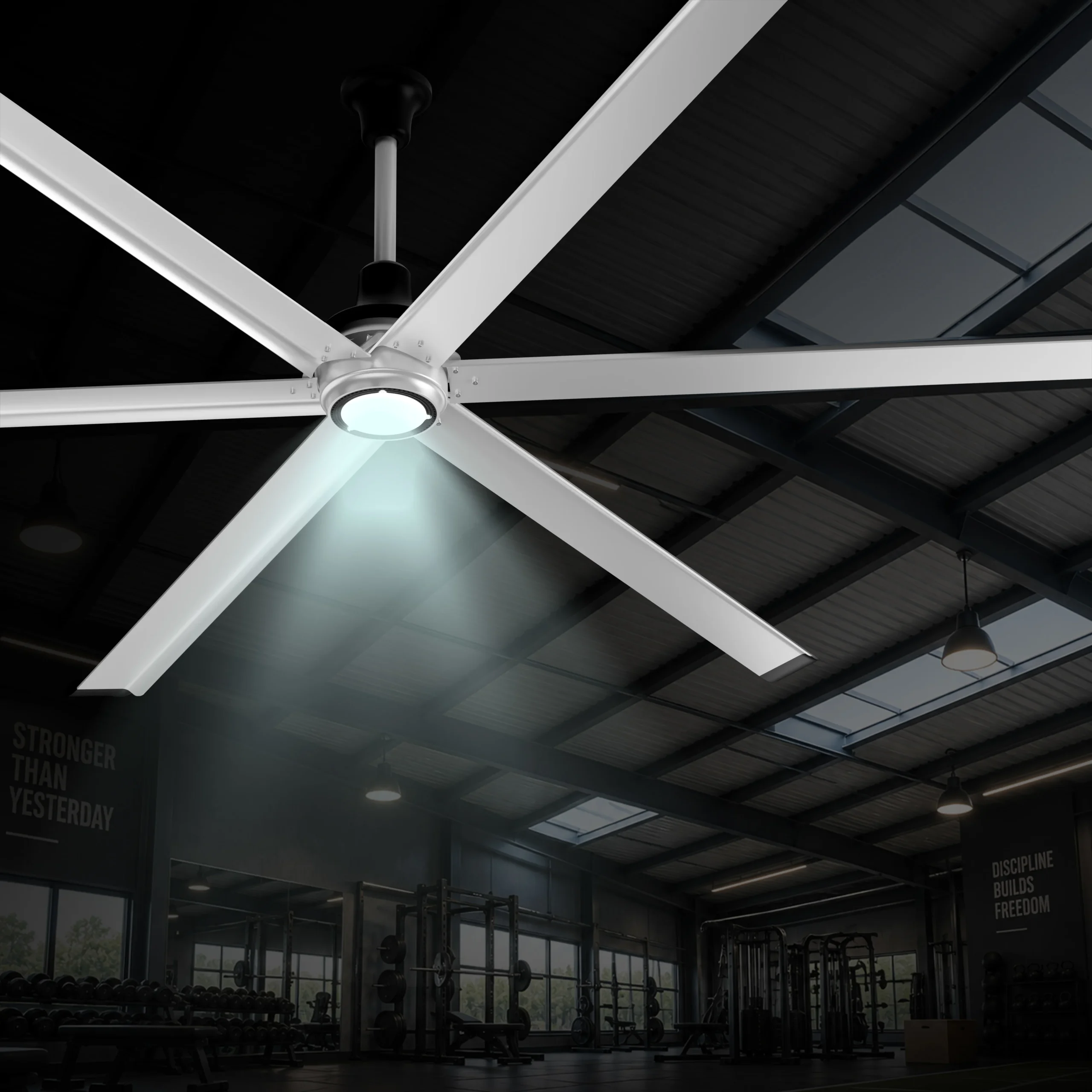

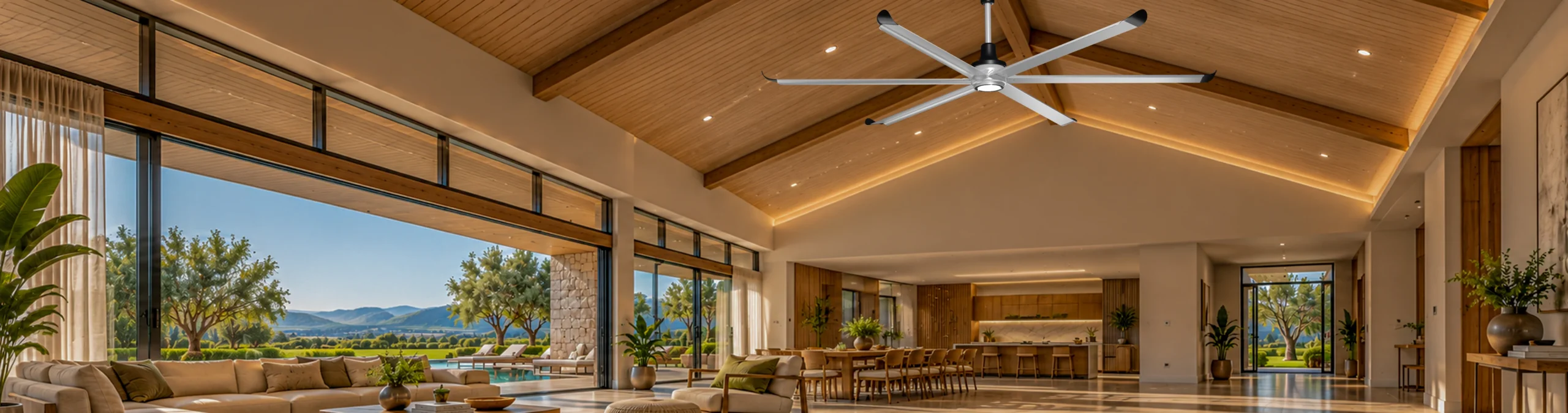

The HeliFan Smart Series is designed to deliver effective air circulation across double-height spaces of up to 20 feet, helping move air from the ceiling toward the occupied area below. Its powerful airflow makes it ideal for luxury homes, farmhouses, resorts, cafés, restaurants, reception areas, auditoriums and other spacious interiors.
ENGINEERED FOR EFFICIENT AIR MOVEMENT
SMART DESIGN. POWERFUL PERFORMANCE.
The HeliFan Smart Series combines aerodynamic blade geometry with an advanced BLDC motor to deliver smooth, efficient and powerful air circulation. The uniquely designed airfoils are engineered to move air effectively while the high-efficiency BLDC motor helps deliver reliable performance with lower energy consumption.
INTEGRATED LIGHTING FOR EVERY AMBIENCE
THREE LIGHT
MODES. ONE SMART FAN.
Warm
Natural
Cool
| Fan Specifications | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Diameter (C) | CFM (Max) | Efficiency (CFM/W) | Max Speed | Watts (Max) | Environment2 | Input Power | Packaged Dimensions and Weight | Fan Weight | Mounting | Sound Level3 |
| 60 in. (152 cm) | 8,056 CFM | 214 | 133 RPM | 23.6 W | Indoor or outdoor UL Wet Rated | 100–240 VAC, 50/60 Hz, 1Φ | 40 in. L x 13.44 in. W x 13.83 in. H (1016 mm L x 341 mm W x 351 mm H) 36.3 lb (16.5 kg) | 23 lb (10 kg) | Flat or sloped Maximum slope: 33° | <35 dBA at max speed |
| 72 in. (183 cm) | 12,894 CFM | 257 | 123 RPM | 39.6 W | 40 in. L x 13.44 in. W x 13.83 in. H (1016 mm L x 341 mm W x 351 mm H) 37.8 lb (17.1 kg) | 25 lb (11 kg) | ||||
| 84 in. (213 cm) | 16,115 CFM | 306 | 101 RPM | 45.7 W | 40 in. L x 13.44 in. W x 13.83 in. H (1016 mm L x 341 mm W x 351 mm H) 39.2 lb (17.8 kg) | 27 lb (12 kg) | ||||
FAQS
Is the HeliFan Smart Series an energy-efficient ceiling fan?
Yes. The Smart Series uses a high-efficiency BLDC motor designed for efficient operation and reduced energy consumption compared with conventional motor technology. Actual energy savings depend on usage, speed settings and operating conditions.
Is the HeliFan Smart Series a silent ceiling fan?
The Smart Series is engineered for smooth and quiet operation, making it suitable for spaces where low operating noise is important, including luxury homes, bedrooms, resorts, cafés and other premium interiors.
Does the Smart Series come with an integrated LED light?
Yes. The Smart Series features an integrated LED light built into the fan. It provides three lighting options: Warm, Natural and Cool, allowing you to select the lighting that suits your space.
Is the Smart Series suitable for double-height ceilings?
Yes. The Smart Series is designed for double-height spaces up to 20 feet, helping circulate air from ceiling level toward the occupied area below.
What type of spaces are suitable for the Smart Series BLDC fan?
The Smart Series is suitable for luxury homes, farmhouses, bungalows, resorts, cafés, restaurants, reception areas, auditoriums, meditation spaces and other spacious interiors.
Does the Smart Series have a remote control?
Yes, the Smart Series is designed with smart remote control functionality, allowing convenient control of fan operation. If your final product specification includes specific speed levels or additional remote functions, those can be added here.
What makes a BLDC fan different from a conventional ceiling fan?
BLDC technology uses an electronically controlled brushless motor, which can provide efficient operation, smooth performance and quieter running. BLDC fans are increasingly marketed around energy efficiency, silent operation and smart controls.
Does the Smart Series provide powerful airflow?
Yes. The Smart Series combines aerodynamic blade design with a high-efficiency BLDC motor to create smooth and effective air movement, making it suitable for larger and double-height spaces.
Is the Smart Series suitable for modern and premium interiors?
Yes. Its contemporary design, integrated LED lighting and multiple lighting modes make the Smart Series suitable for modern homes, luxury interiors, resorts, restaurants, cafés and other premium spaces.
